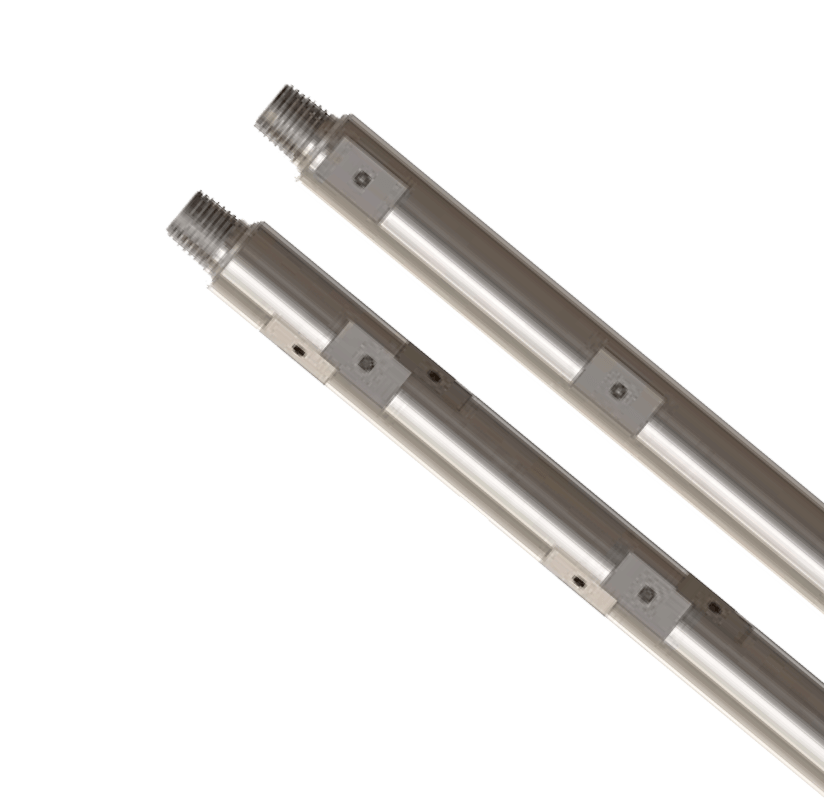

The High Velocity Abrasive Perforating Tool has special port design and positioning for directing an abrasive fluid through tubing or casing into the formation. Running this tool with a special mixture of abrasive fluids accomplishes a complete perforation of the well. Because of the design of the Abrasive Perforating System, multiple perforations are possible on a single trip in the hole. Case histories have shown over 200 perforations on a single trip. Custom tool designs are available to provide the desired perforations per foot.
Not only is this system a viable alternative to TCP or conventional wireline perforating, but it can also perforate wells where other systems are not an option. The system has proven successful in perforating drill collars, drill pipe, and multiple casing strings in a single trip.
- Planar Perforator
- Spiral Perforator
- Slim-Hole Perforator
- Oriented Perforator
Key features
- Multiple Zone Perforations in One Trip
- Heavy Wall and Multi-String Perforations
- Horizontal Well Applications
- Custom Sizes Available
- Nitro-Tuff Perforators Available in all Configurations
Specs
| o.d | I.D. | LENGTH | OVERPULL | TORQUE | DROP BALL | CONNECTION |
|---|---|---|---|---|---|---|
| in mm | in mm | ft m | lbs kg | ft-lbs Nm | ||
| 2.88 73.0 | 0.50 12.7 | 3.07 0.94 | 174,856 79,313 | 4,489 6,086 | 0.562" / 0.623" | 2-3/8" PAC |
| 3.25 83.0 | 0.53 13.5 | 3.54 1.08 | 99,200 44,996 | 2,500 3,390 | 0.562" / 0.623" | 2-3/8" PAC |
| 3.50 88.9 | 0.53 13.5 | 3.55 1.08 | 99,200 44,996 | 2,500 3,390 | 0.562" / 0.623" | 2-3/8" PAC |
