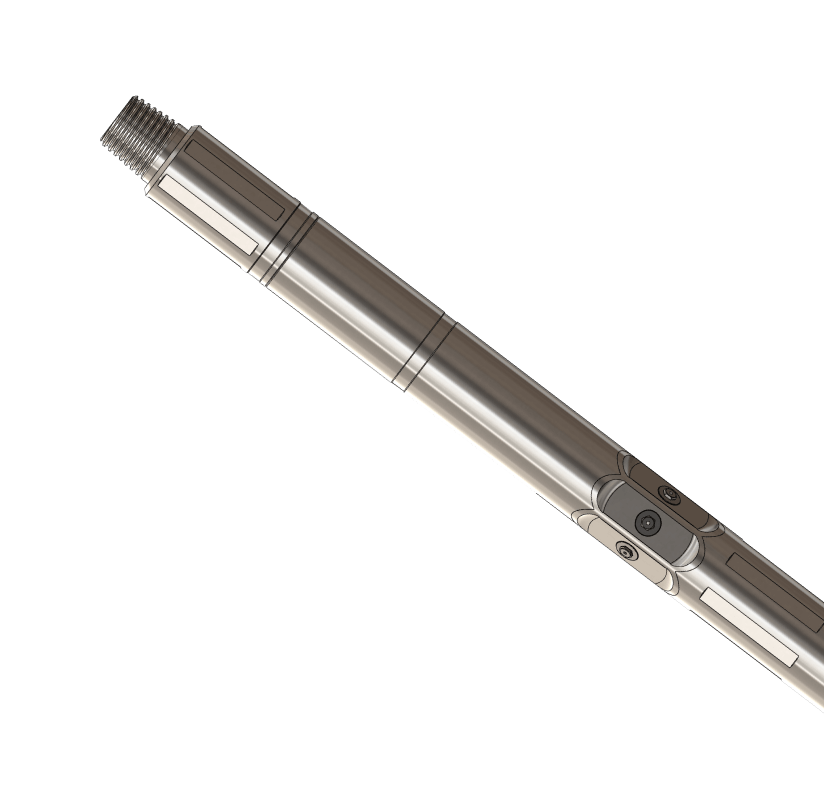

Allows the operation of tools below the perforation, the perforator itself, and then below the perforator again in a single run. This system is typically run with a motor for toe prep operations to provide a means of cleaning to bottom prior to and after perforating.
Key features
- Multiple Zone Perforations in One Trip
- Heavy Wall and Multi-String Perforations
- Horizontal Well Applications
- Custom Sizes Available
- Nitro-Tuff Perforators Available in all Configurations
Specs
| o.d | I.D. | LENGTH | OVERPULL | TORQUE | DROP BALL | CONNECTION |
|---|---|---|---|---|---|---|
| in mm | in mm | ft m | lbs kg | ft-lbs Nm | ||
| 2.88 73.0 | 0.50 12.7 | 3.07 0.94 | 174,856 79,313 | 4,489 6,086 | 0.562" / 0.623" | 2-3/8" PAC |
| 3.25 83.0 | 0.53 13.5 | 3.54 1.08 | 99,200 44,996 | 2,500 3,390 | 0.562" / 0.623" | 2-3/8" PAC |
| 3.50 88.9 | 0.53 13.5 | 3.55 1.08 | 99,200 44,996 | 2,500 3,390 | 0.562" / 0.623" | 2-3/8" PAC |
