Hydraulic

Disconnect

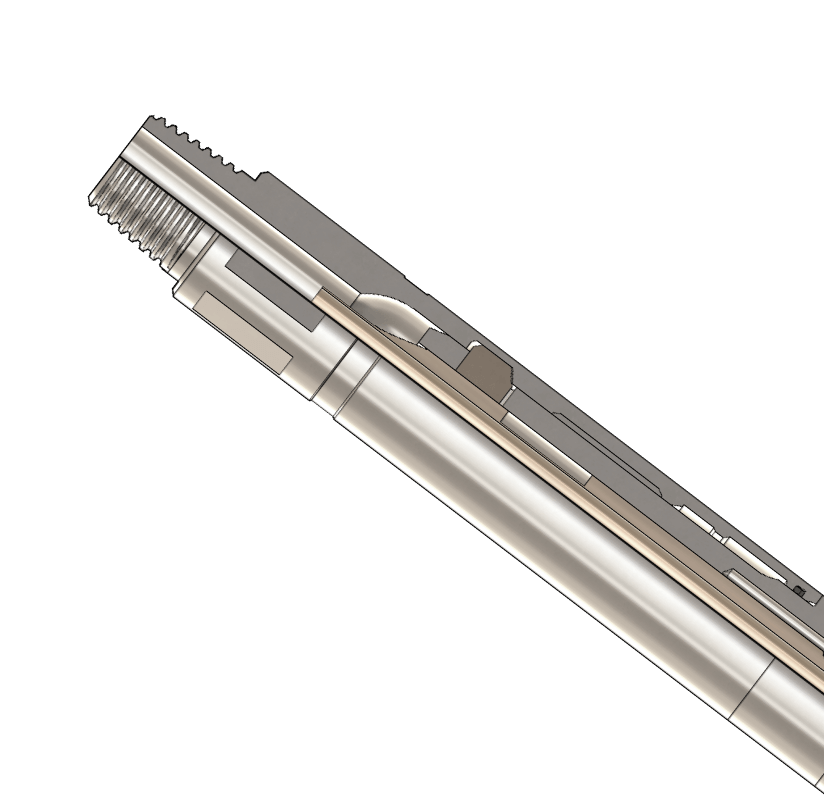

The Hydraulic Disconnect is an essential piece of equipment used for releasing the coiled tubing from the bottom hole assembly if it has become stuck while in the wellbore. Features include “hidden” internal shear screws that are fully retained and cannot come loose. This design transmits torque by use of internal splines that are far more durable than standard external “castles” which are more susceptible to damage.

Key features

  • Transmits Torque
  • Standard G.S. Type Internal Fishing Profile
  • Impact Resistant to Jarring
HYDRAULIC DISCONNECT

Specs

O.D.I.D.LENGTHOverpullTorqueConnection
in. mmin. mmft. mlbs. kgft-lbs Nm
1.70 43.20.45 11.51.43 0.4443.000 19.505625 8471” AM MT
2.13 73.90.53 13.51.74 0.5360,000 27,216994 1,3481-1/2” AM MT
2.88 73.00.69 25.42.24 0.68103,104 46,7674,489 6,0862-3/8” PAC
3.13 79.50.81 20.62.70 0.82135,720 61,5625,879 7,9712-7/8” PAC
