Undisputed workhorse

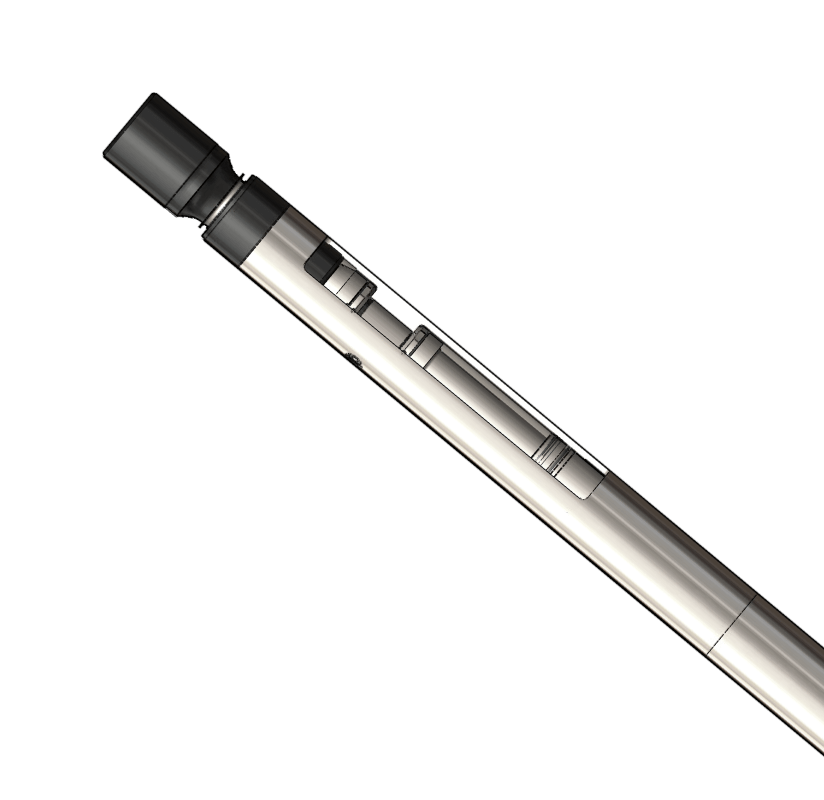

Thru Tubing Solutions’ All Metal Motor combines a standard motor bearing pack with a power section that uses both a metal rotor and a metal stator. Typical stators use an internal rubber core bonded to a steel housing which can be susceptible to swelling or debonding in certain chemical envorinments downhole. Unlike rubber stators, a metal stator will have both a high chemical resistance and a broad temperature range to make it one of the most versatile motors on the market.
CASE STUDYKey features
- Durable Design
- Resistant to many chemicals
- No temperature limitations

Specs
o.d | flow rance | connection |
---|---|---|
in mm | bpm lpm | |
1.69 42.9 | 0.75-1.25 119-198 | 1’’ AM MT |
2.13 54.0 | 1.0 - 2.0 159-318 | 1-1/2’’ AM MT |
2.88 73.0 | 1.5- 3.9 239-620 | 2-3/8’’ PAC |
