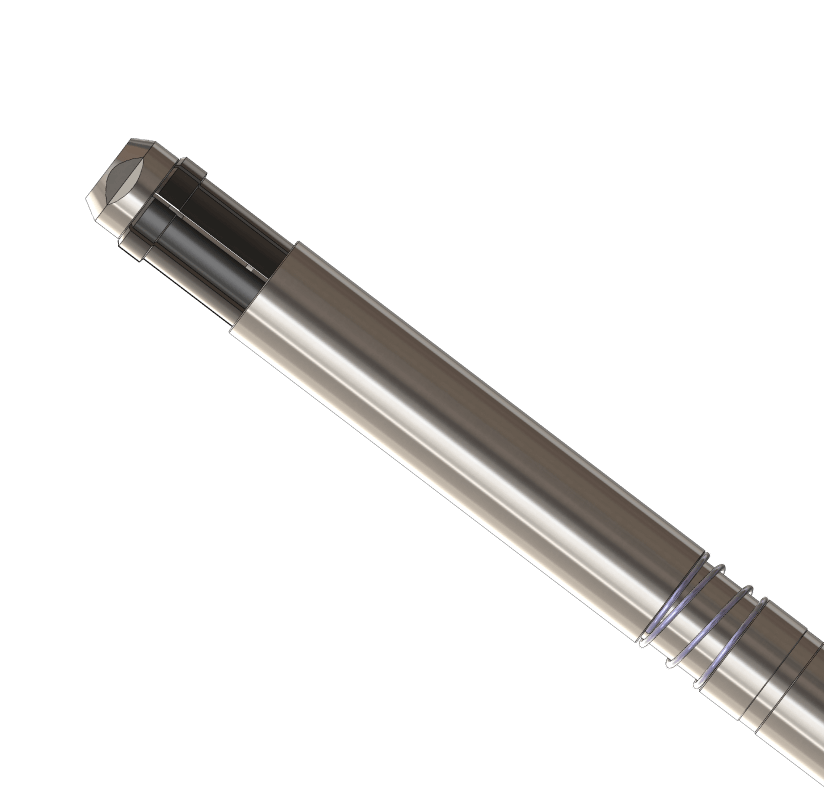

GS Spear

The GS Spear is used to retrieve a device with an internal fishing neck profile. The Spear is designed to withstand high side and tensional loads during a jarring operation. Thru Tubing Solutions utilizes two types of GS spears. Both mechanical and hydraulic spears have special applications
depending on well conditions.

Key features

  • Continuous Flow-Thru
  • Withstands High Tensile Forces
  • Jar Down to Release (Mechanical)
  • Flow Release Type (Hydraulic)
GS SPEAR

Specs

GS SPEAR - HYDRAULIC TYPE

GS PROFILEO.D.I.D.LENGTHOVERPULLCONNECTION
NOMin mmin mmft mlbs kg
21.81 46.10.19 4.82.13 0.6524,960 11,3221” AM MT
2-1/22.13 53.90.25 6.42.13 0.6536,320 16,4751-1/2” AM MT
32.88 73.00.25 6.42.77 0.8454,400 24,6752-3/8” PAC

Specs

GS SPEAR - MECHANICAL TYPE

GS PROFILEO.D.I.D.LENGTHCONNECTION
NOMin mmin mmft m
21.75 44.50.19 4.80.97 0.301” AM MT
2-1/22.16 54.90.31 7.80.99 0.301-1/2” AM MT
32.88 73.00.50 12.71.01 0.312-3/8” PAC
