Accelerators

The Accelerator is a downhole tool used with a jar to increase the impact force as the jar is fired. The Accelerator uses a mechanical spring to store the energy released during operation, and it is typically recommended for shallow operations when the coiled tubing length does not provide sufficient potential energy to the impact.

Key features

  • Amplifies Jarring Impact
  • Flow-Thru Design with same ID as Jar
  • Torque-Thru

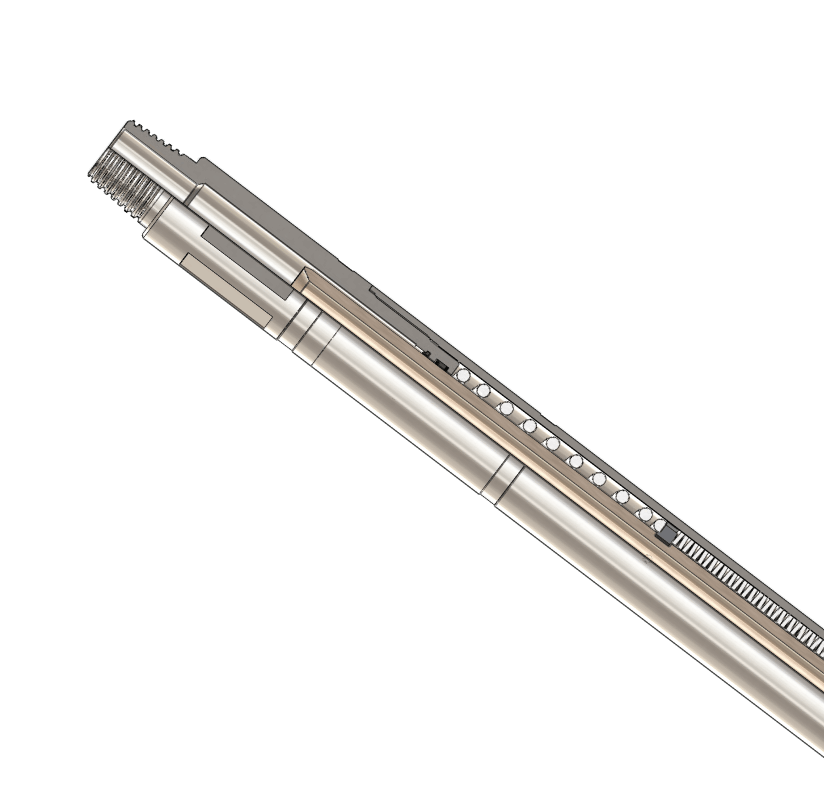

ACCELERATOR

Specs

O.D.I.D.LENGTHOVERPULLTORQUECONNECTION
in mmin mmft mlbs kgft-lbs Nm
1.70 43.20.56 14.22.93 0.8941,900 19,006355 4811” AM MT
2.13 54.00.69 17.53.97 1.2173,041 33,131628 8511-1/2” AM MT
2.88 73.00.88 22.44.93 1.50 159,865 72,5144,489 6,0862-3/8" PAC
3.13 79.20.88 22.45.28 1.61195,742 88,787 5,879 7,9712-7/8” PAC
